With excellent anticorrosive capacity and thermal resistance, the graphite is suitable for heat transfer in corrosive mediums, which could endure most acids, alkalis and other corrosive mediums, especially adequate for high temperature corrosive mediums and ultimate vacuum conditions.
With excellent anticorrosive capacity and thermal resistance, the graphite is suitable for heat transfer in corrosive mediums, which could endure most acids, alkalis and other corrosive mediums, especially adequate for high temperature corrosive mediums and ultimate vacuum conditions. Our products include Graphite straight tube, Graphite expansion joint, Graphite tee, Graphite elbow, etc.
* High resistance to thermal shocking
* Thermal resistance up to 200 ℃
* Easy for maintenance
* Working life over 10 years
* Anti-abrasion after surface treatment
* Customized design
* Customized design, we could offer tee, elbow, straight tube and expansion joint etc.
Graphite straight tube
| Type | D | D1 | K | n-Φ | L |
| DN250 | 250 | 330 | 410 | 12-Φ23 | 1000 |
| DN300 | 300 | 380 | 470 | 16-Φ23 | 1000 |
| DN400 | 400 | 490 | 585 | 20-Φ23 | 1500 |
| DN500 | 500 | 600 | 770 | 20-Φ23 | 1500 |

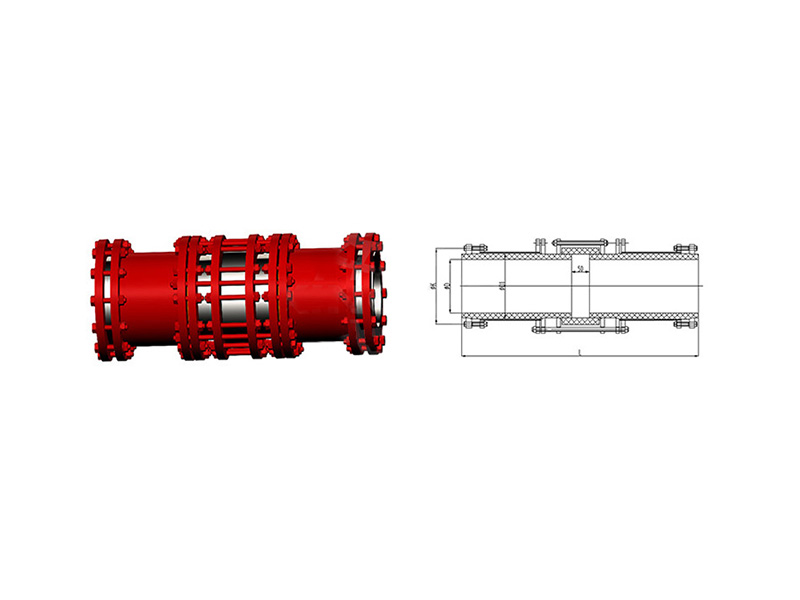

Graphite expansion joint
| Type | D | D1 | K | n-Φ | L |
| DN250 | 250 | 330 | 410 | 12-Φ23 | 320 |
| DN300 | 300 | 380 | 470 | 16-Φ23 | 350 |
| DN400 | 400 | 490 | 585 | 20-Φ23 | 450 |
| DN500 | 500 | 600 | 770 | 20-Φ23 | 550 |

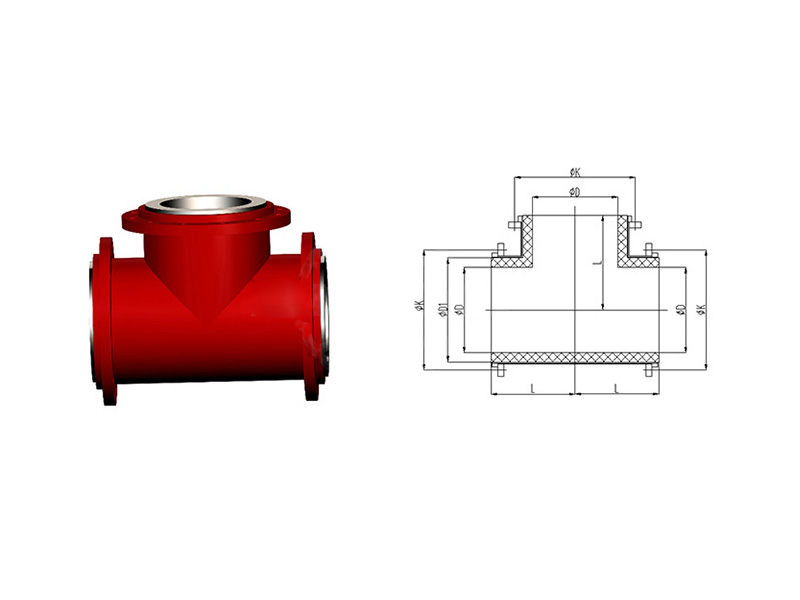

Graphite tee
| Type | D | D1 | K | n-Φ | L |
| DN250 | 250 | 330 | 410 | 12-Φ23 | 320 |
| DN300 | 300 | 380 | 470 | 16-Φ23 | 350 |
| DN400 | 400 | 490 | 585 | 20-Φ23 | 450 |
| DN500 | 500 | 600 | 770 | 20-Φ23 | 550 |

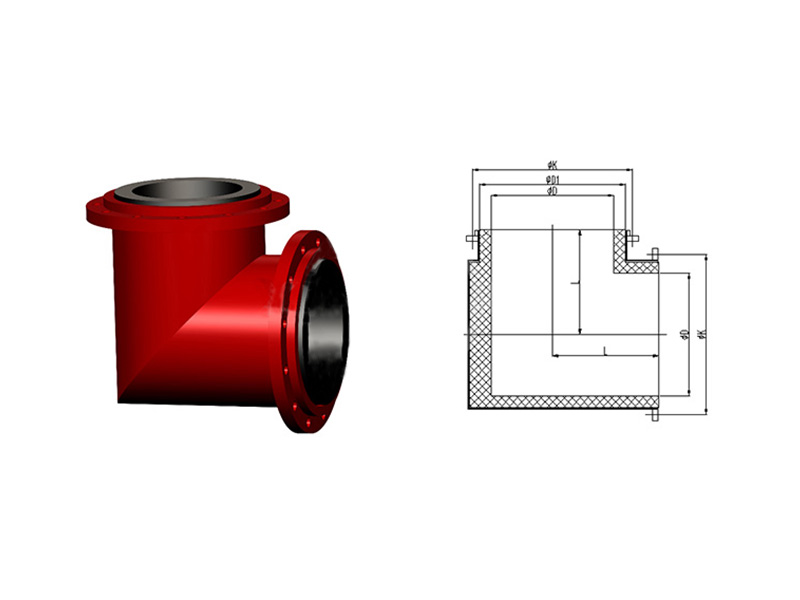

Graphite elbow
| Type | D | D1 | K | n-Φ | L |
| DN250 | 250 | 330 | 410 | 12-Φ23 | 320 |
| DN300 | 300 | 380 | 470 | 16-Φ23 | 350 |
| DN400 | 400 | 490 | 585 | 20-Φ23 | 450 |
| DN500 | 500 | 600 | 770 | 20-Φ23 | 550 |
